Team Associated RC28 Team Kit (No Tires and Body)

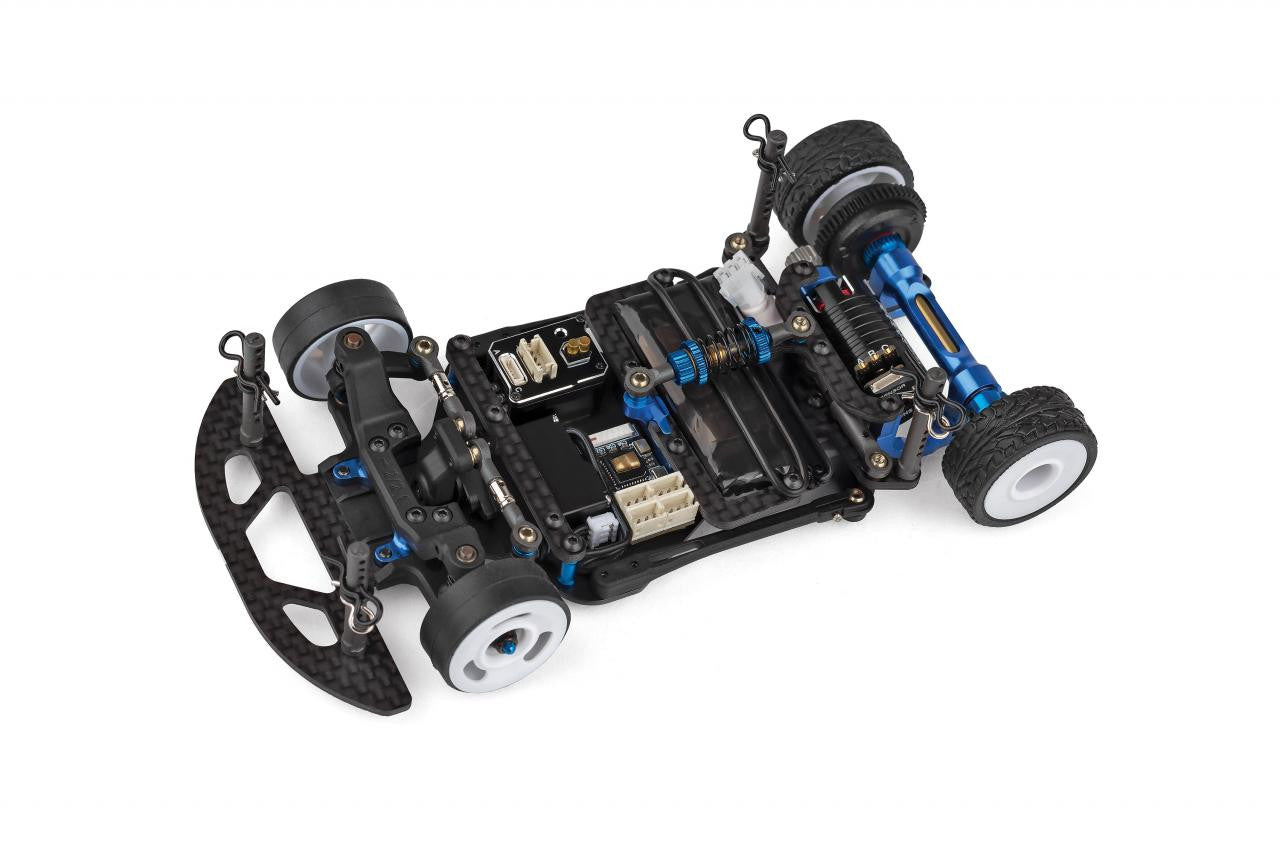

🏎️ RC28 Team Kit

1:28 Scale 2WD Electric On-Road Competition Kit

Overview

Introducing the Team Associated RC28R Team Kit — a compact, high-performance on-road race car designed with the same AREA 51 engineering precision found in every Team Associated vehicle.

Though small in scale, the RC28R delivers big performance in an easy-to-set-up package. It features a fixed-arm front suspension with optional molded upper arms for fine-tuning caster and camber.

The torsion side links (soft, medium, and hard included) replace the need for side springs, simplifying setup while improving handling in ways traditional springs cannot.

A quick-access battery holder allows battery changes without removing the center shock, and the steel chassis plate provides a low center of gravity for consistent cornering performance.

Key Features

• Steel chassis plate for low center of gravity
• Fixed arm style front end with optional molded upper arms to adjust caster and camber
• Front bulkhead design allows for quick upper arm changes with consistent fitment and position
• Optimized steering geometry with adjustable servo mount to tune Ackermann on the fly
• Easily removable battery holder to access the battery without removing the center shock
• Torsion-style side links act as side springs (soft, medium, and hard options included)
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level
• Optimized roll geometry with side damper tubes
• Threaded aluminum center shock with adjustable droop and spring collar
• Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights using Factory Team carbon fiber shims
• Gear differential included; compatible with other aftermarket options
• Hard plastic and polycarbonate body mounting options included
• White wheels included that fit optional front wheel flanges to tune steering feel
• Universal front bumper included

Not Included

• Body

Recommended Tools & Accessories

• Silicone Shock Fluid (refer to catalog for complete listings)
• Silicone Diff Fluid (refer to catalog for complete listings)
• Body Scissors (AE Part #1737)
• Reamer / Hole Punch
• FT Wrench Set (AE Part #1519)
• Hobby Knife
• Needle Nose Pliers
• Wire Cutters
• Soldering Iron
• Calipers or Precision Ruler
• Drivers: 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, PH00 driver

Built for Performance and Precision

Compact, tunable, and ready to race — the RC28R Team Kit delivers professional-level handling and adjustability in a small-scale package. Perfect for both competition and fun in tight spaces.
